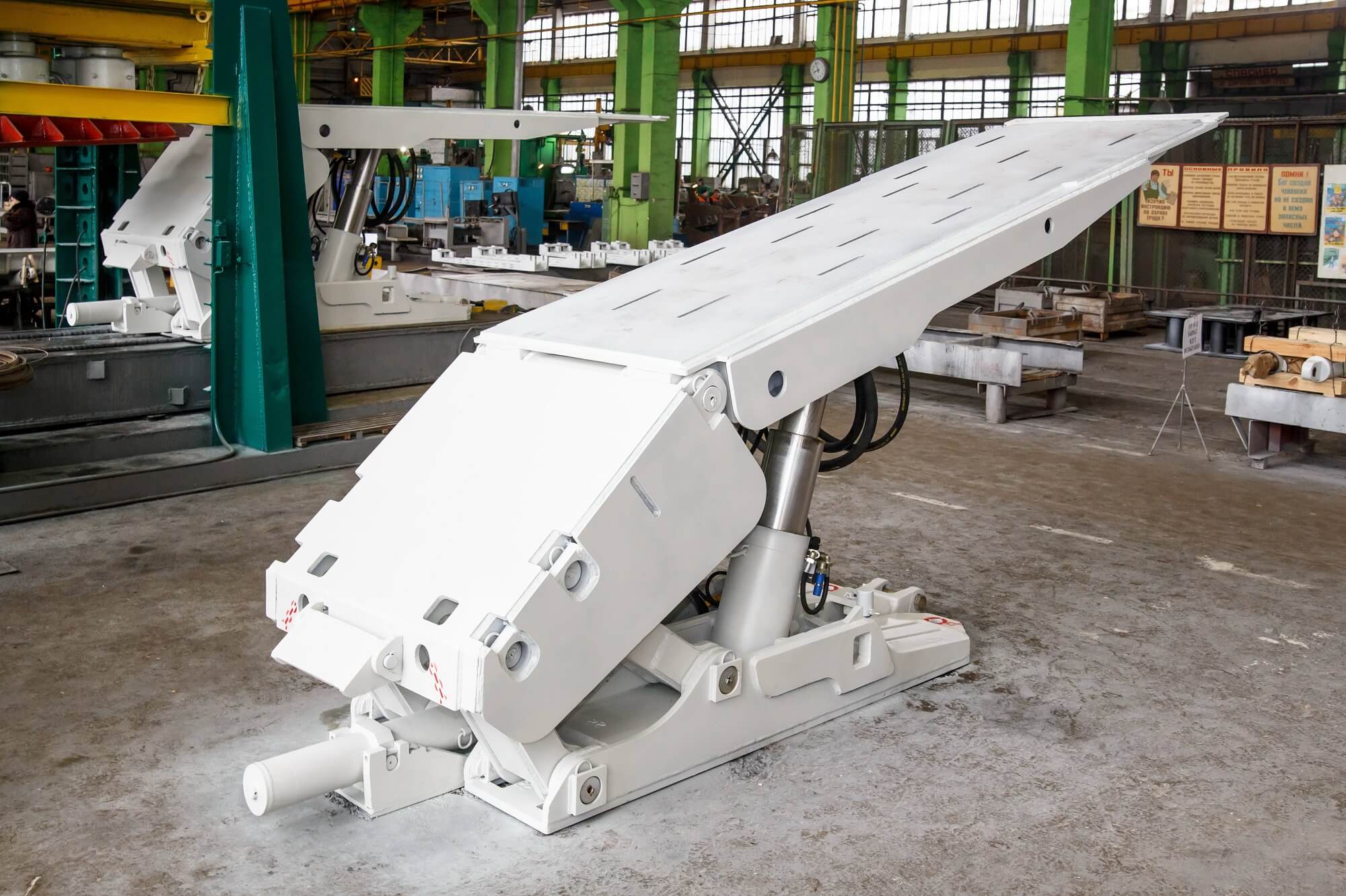

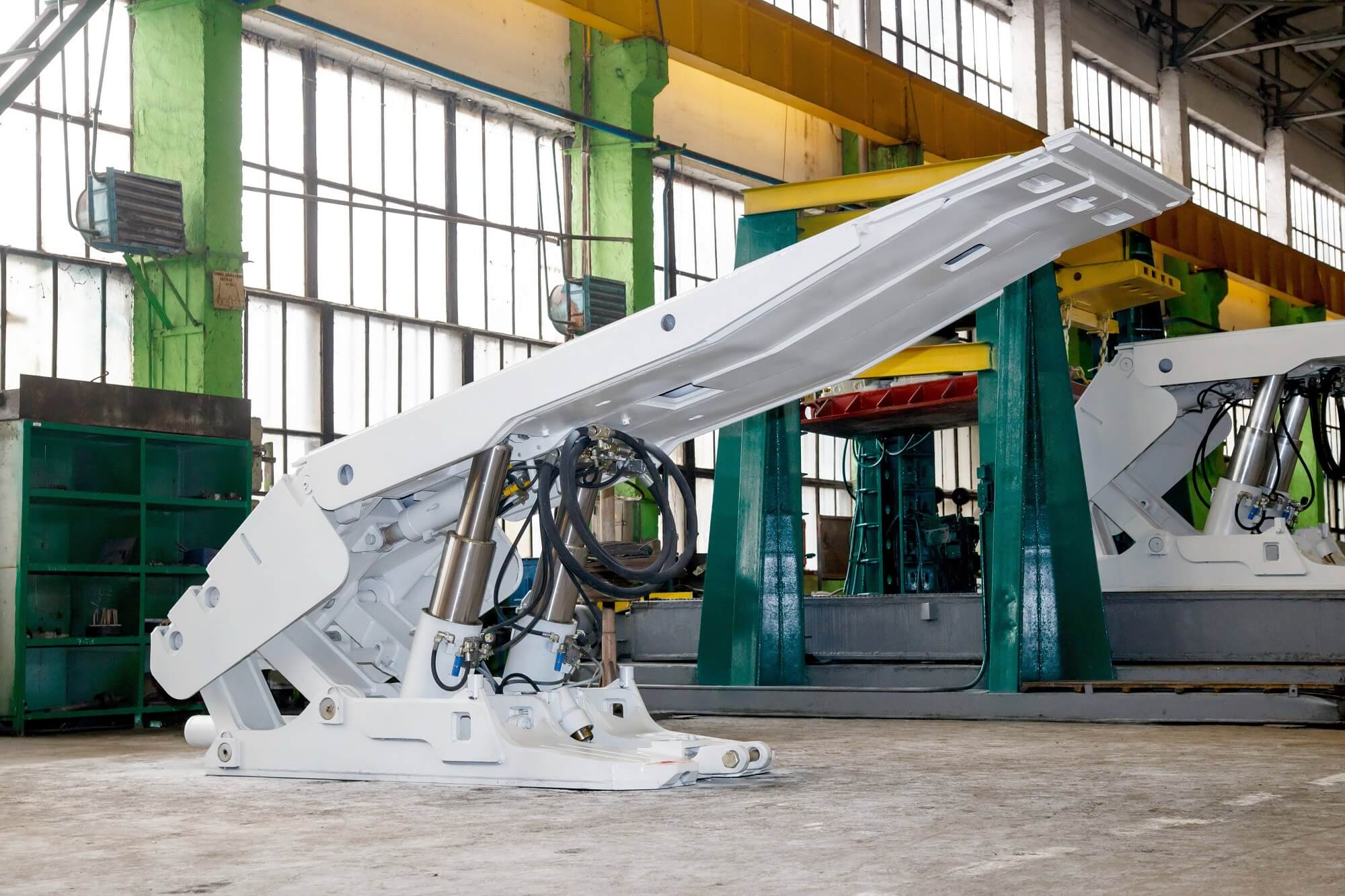

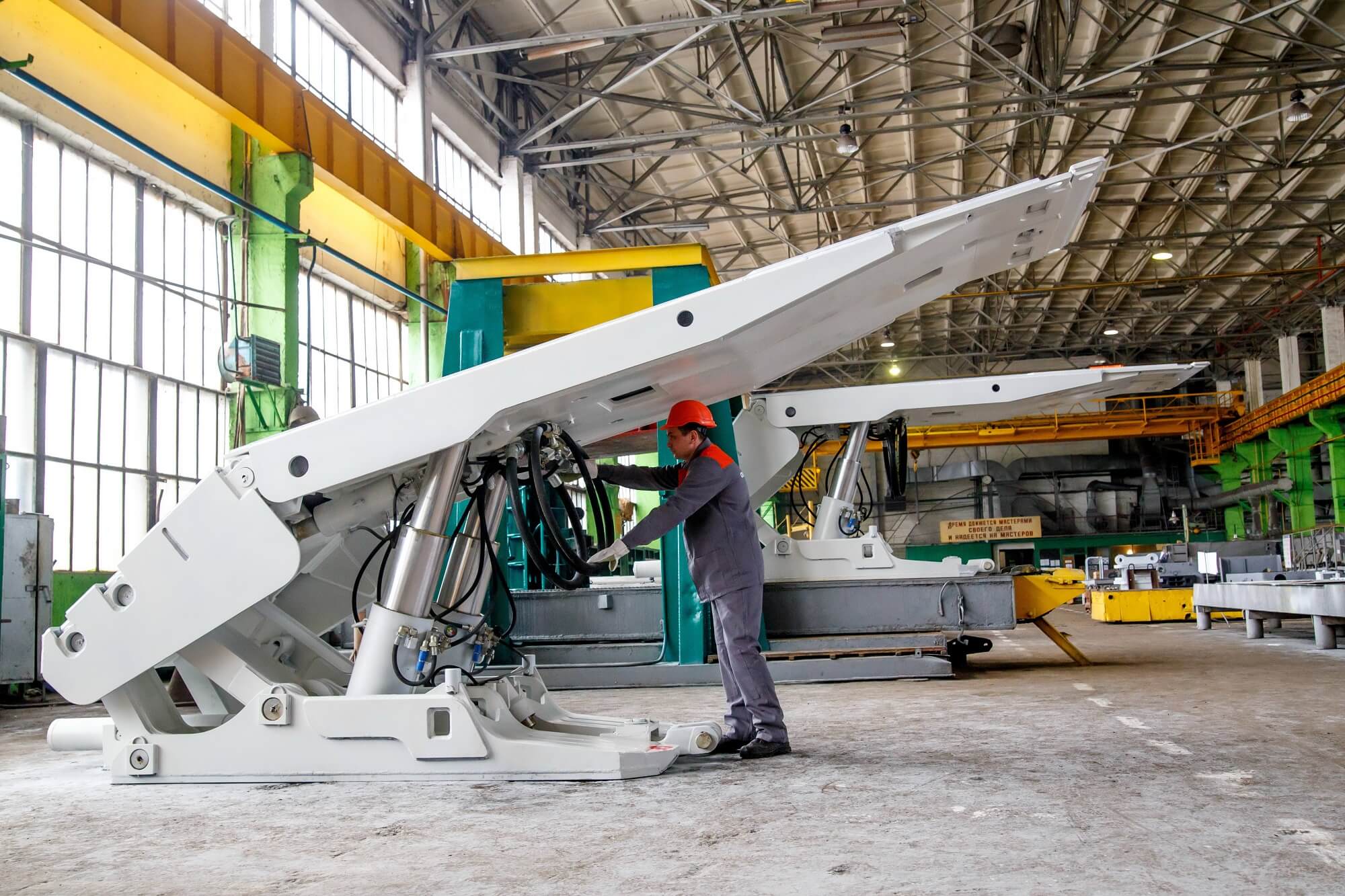

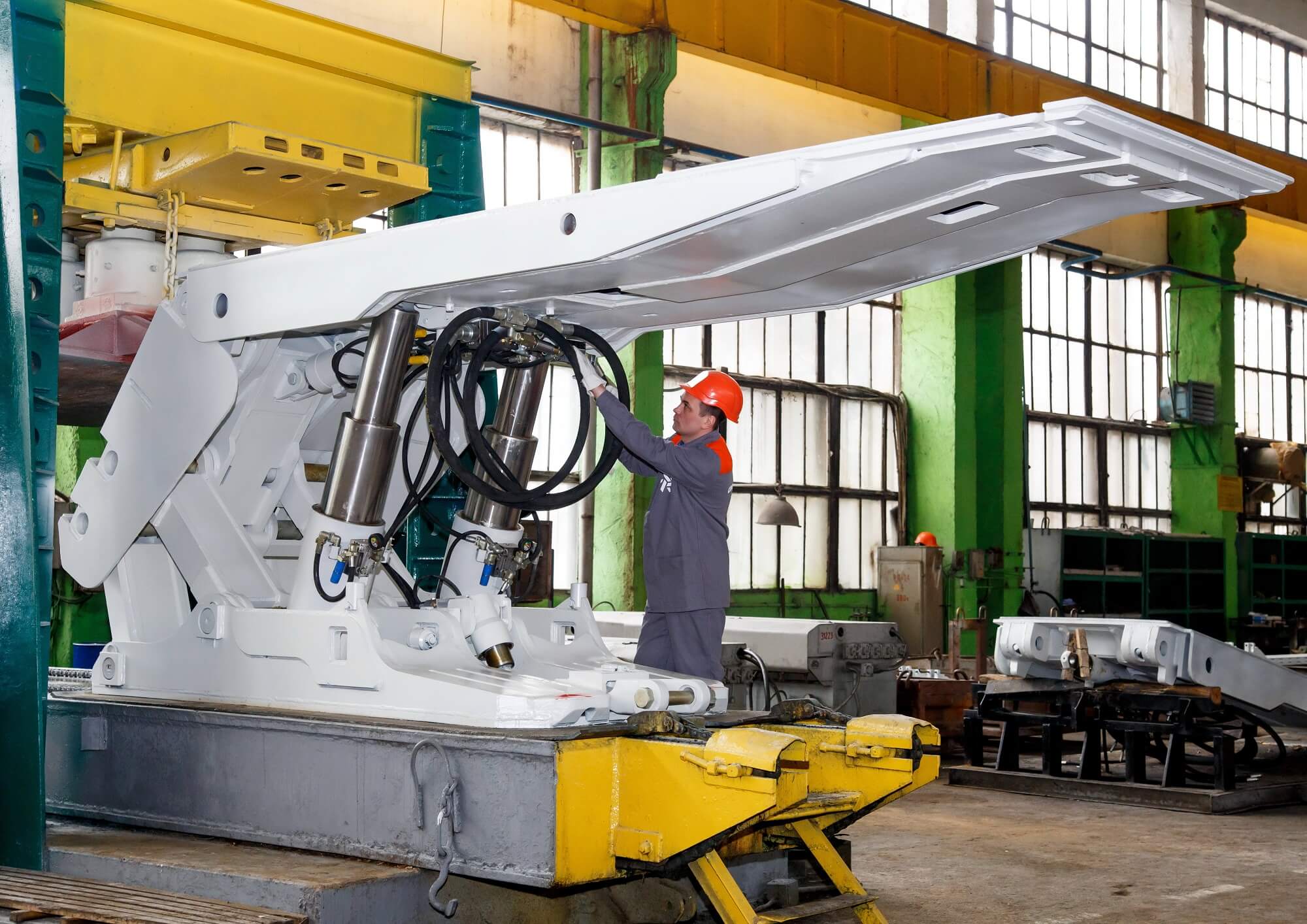

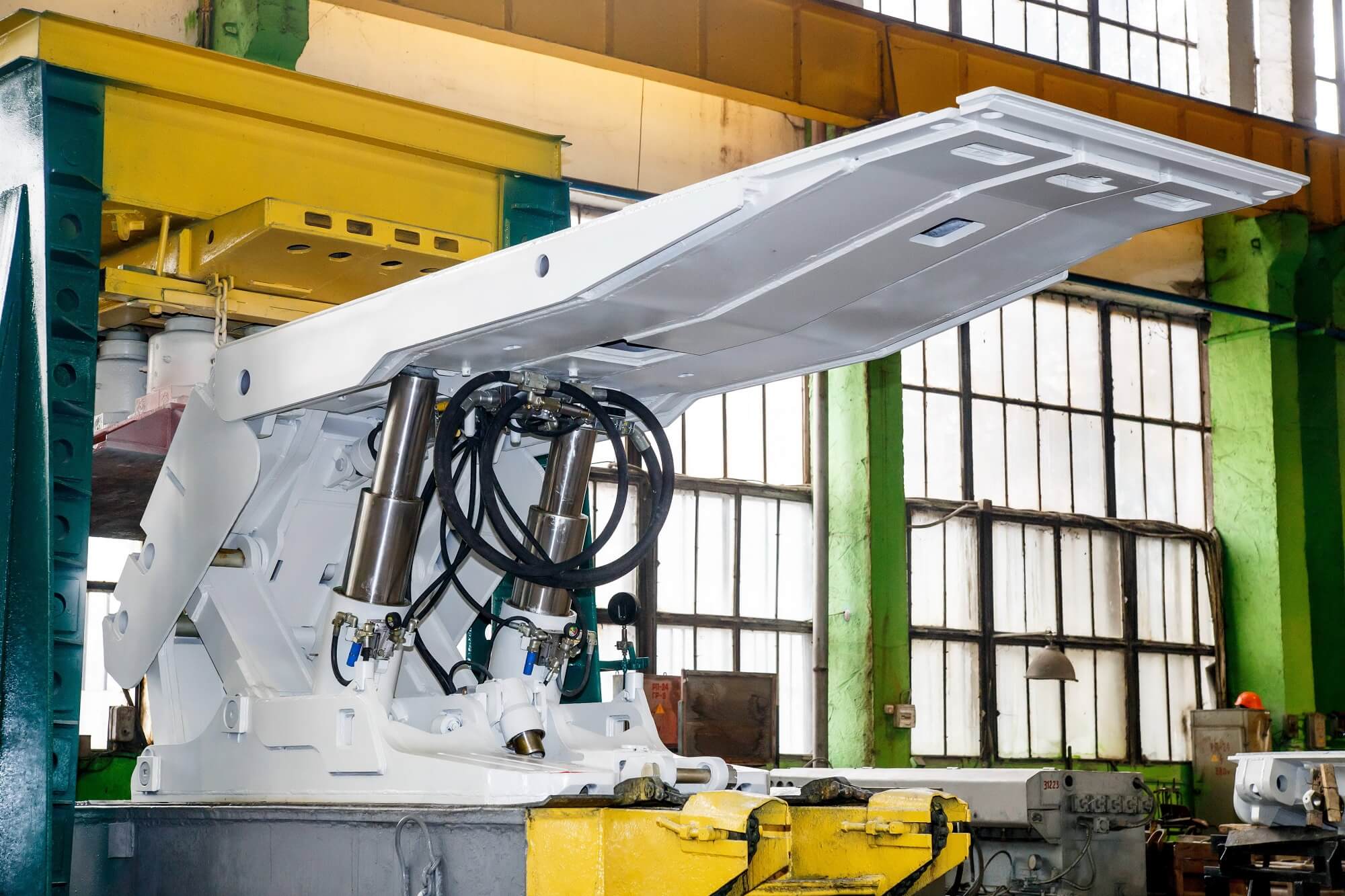

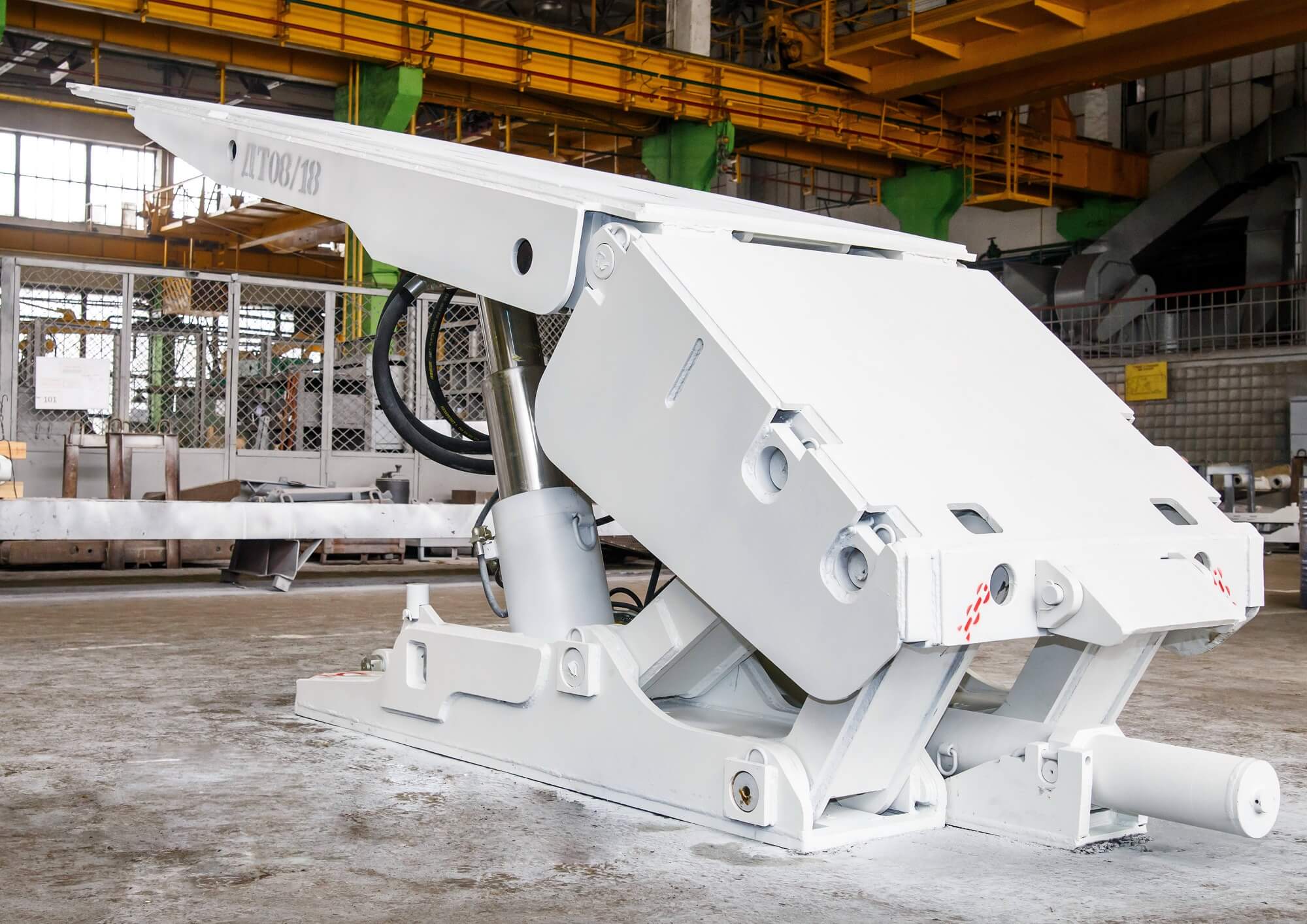

E-mailPowered roof supports DT
TwitterDescription
Designed for supporting and controlling the roof in mined area of face while operating flat seams of 0.95-4.1 m thickness.
Main advantages:
- optimized construction to operate in thin and medium seams with medium-weight roofs according to GOST 31561;
- effective operation in conditions of unstable direct roof using the high retaining console effort with transmitting an effort from the hydraulic prop (patented);
- long-lifetime power hydraulic system;
- effective and reliable European-made control system of different types: pilot control, multi-hose control, electric-hydraulic control.
Characteristics
| Seam thickness, m | 0,95 – 4,1 |
| Shield type | Shield, support-protection type, double-prop |
| Resistivity per 1 m2 of supported area, kN/m2 | 550 – 850 |
| Shield resistance, kN | 3400 – 4800 |
| Advance step, m | 0,8 (0,63) |
| Centre spacing, m | 1,5 |
| Advancing force, kN | 392 – 640 |
| Shield weight, t (no more than) | 9,6 – 17,5 |
| Height (min-max), mm | 700 – 4100 |
| Width, mm | 1440 |
