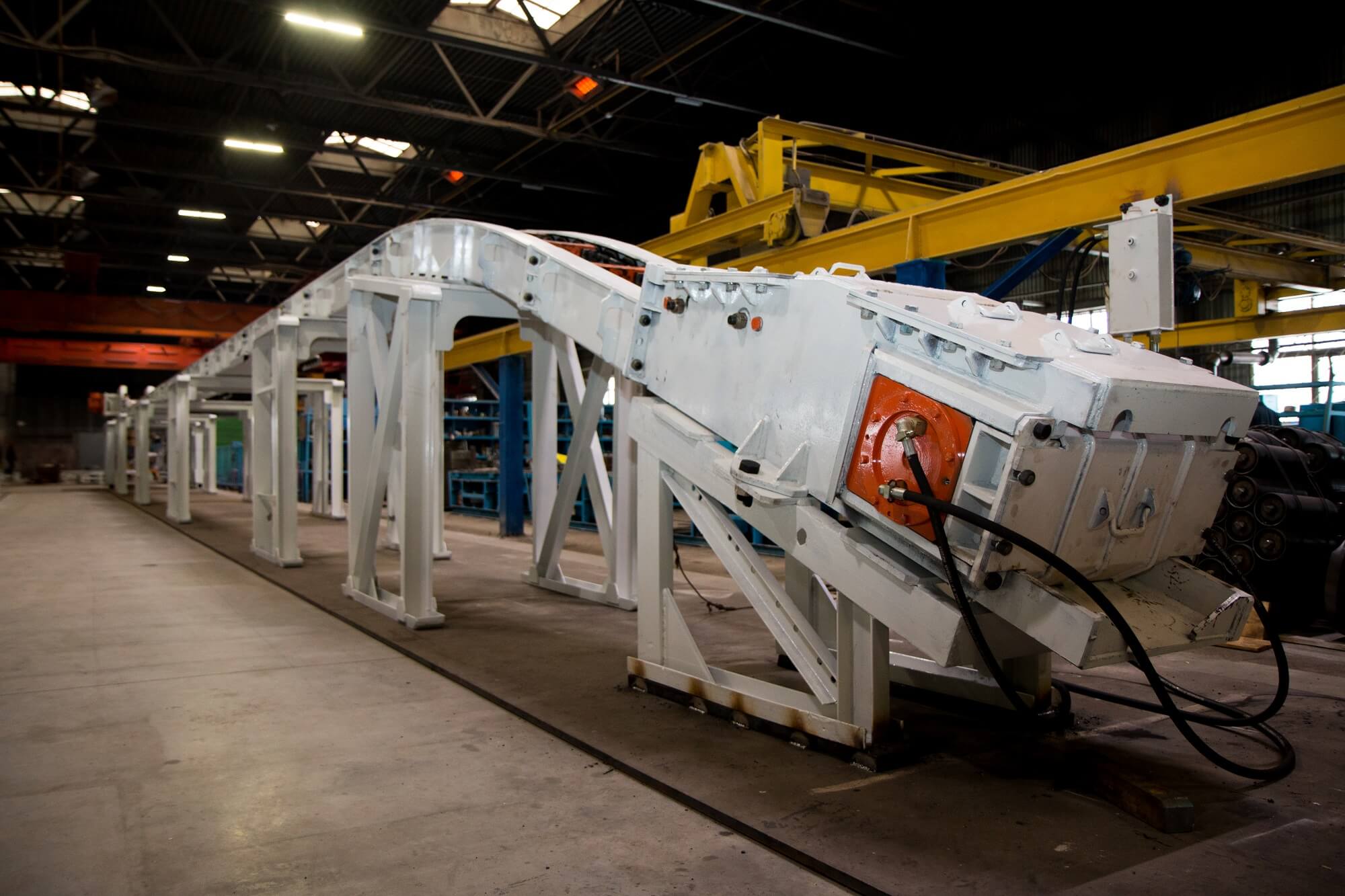

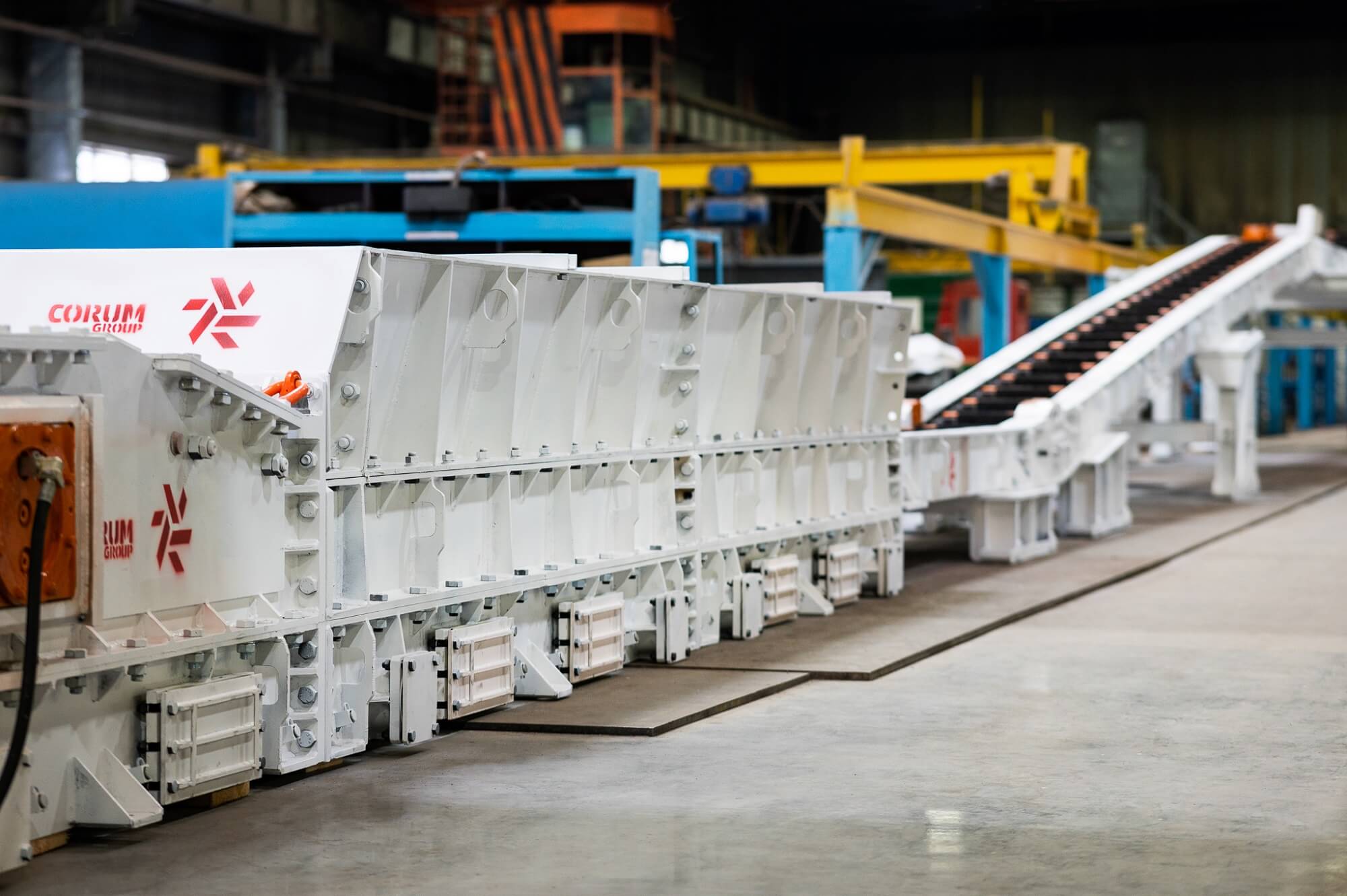

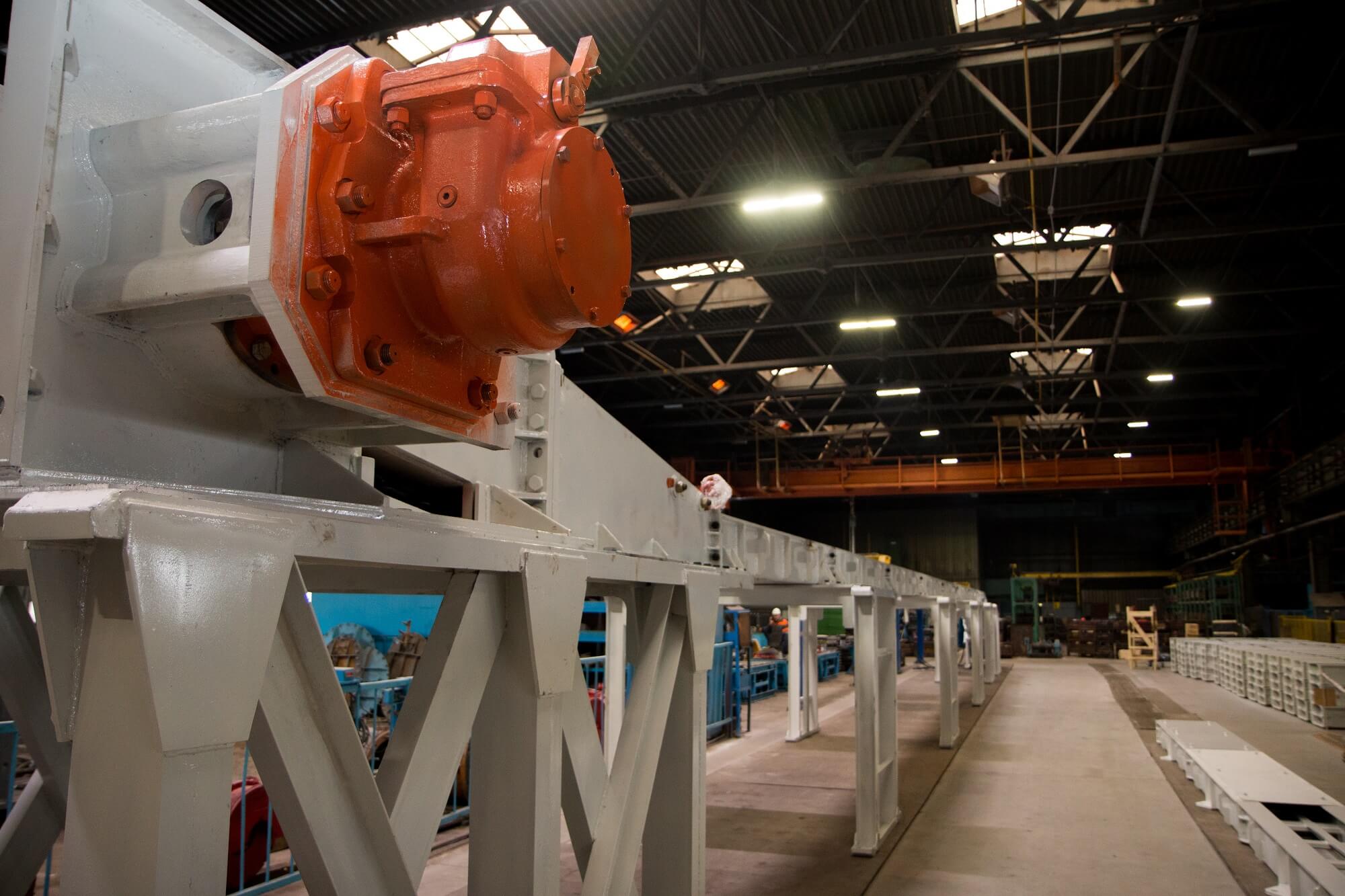

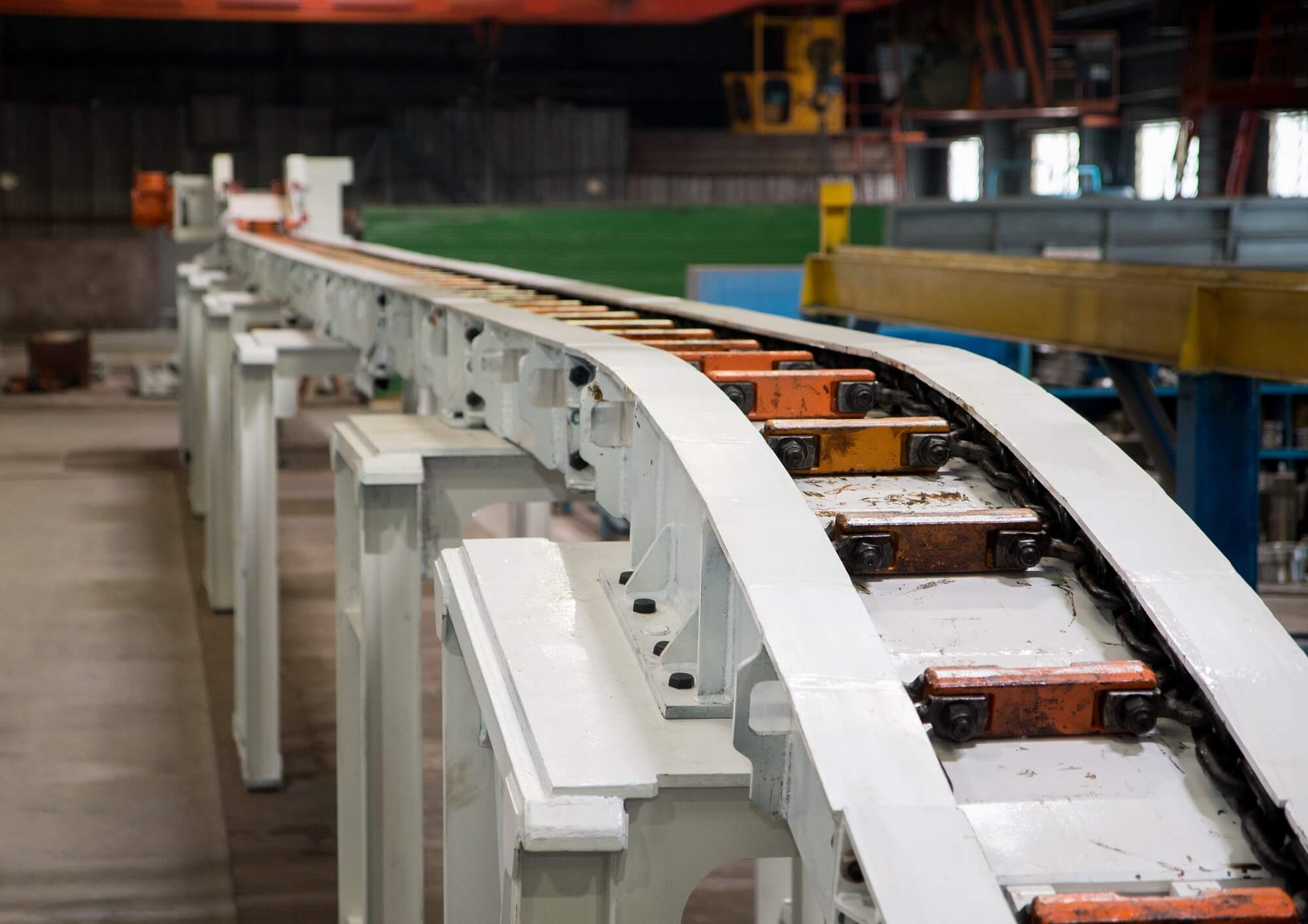

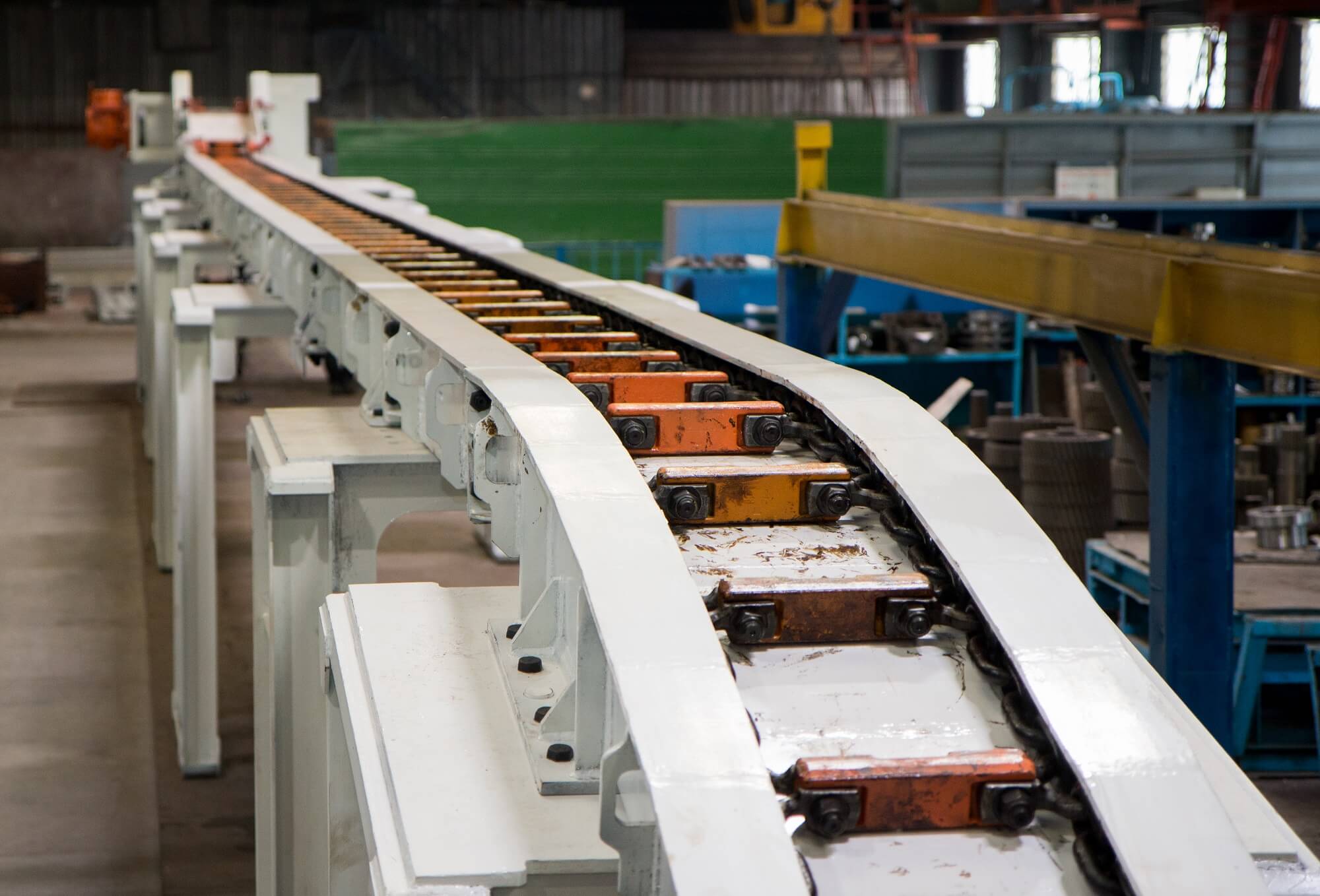

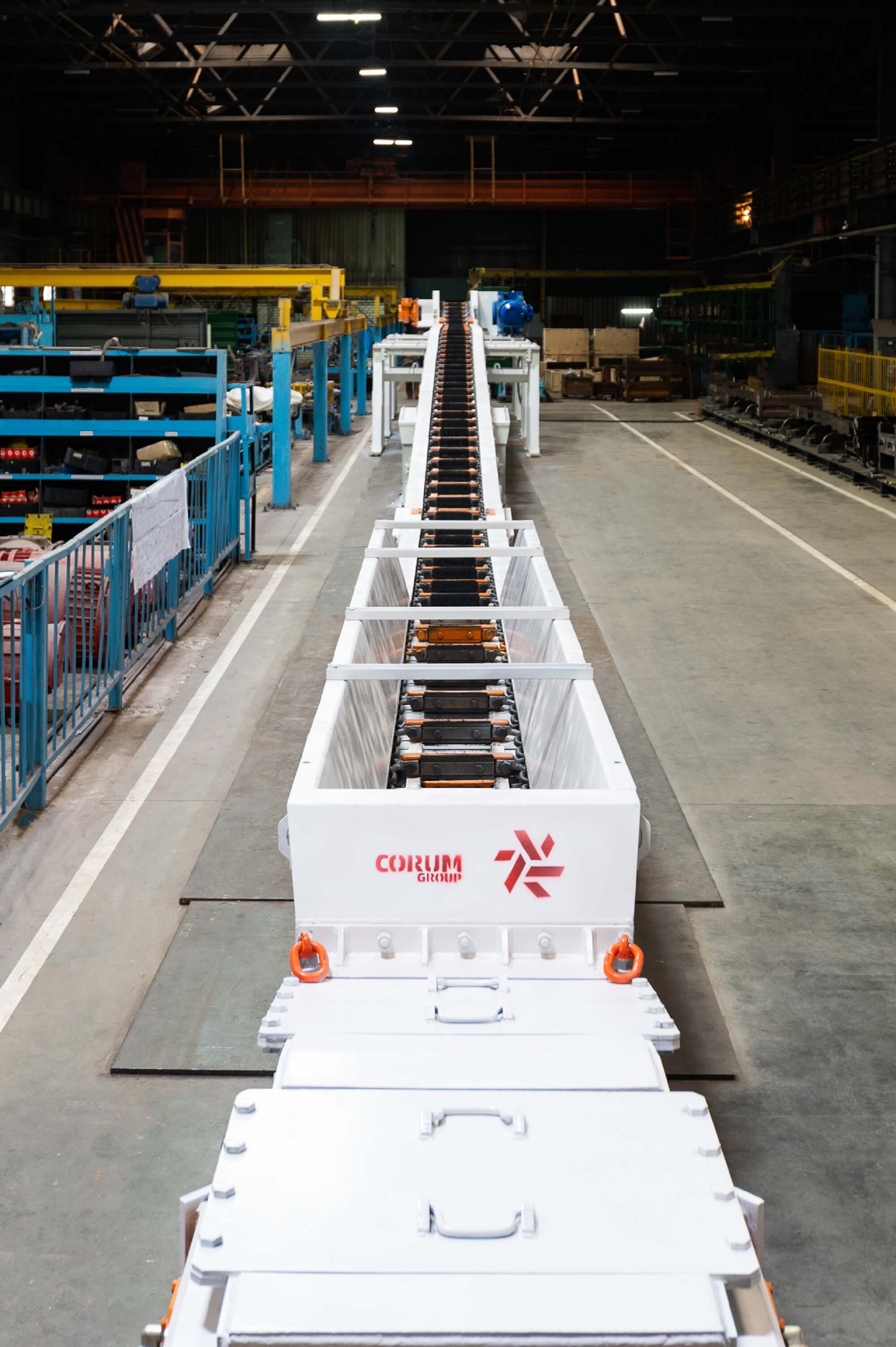

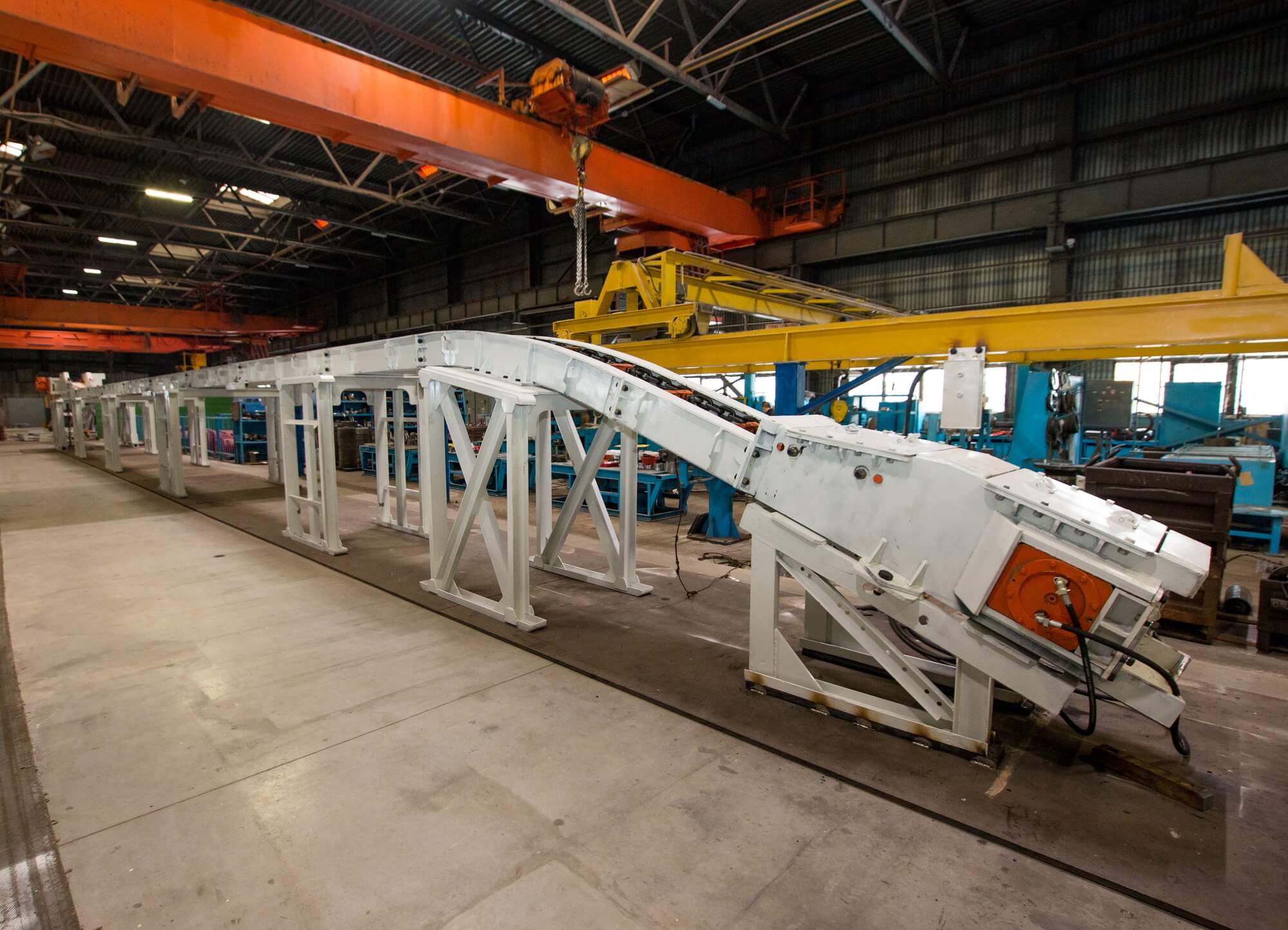

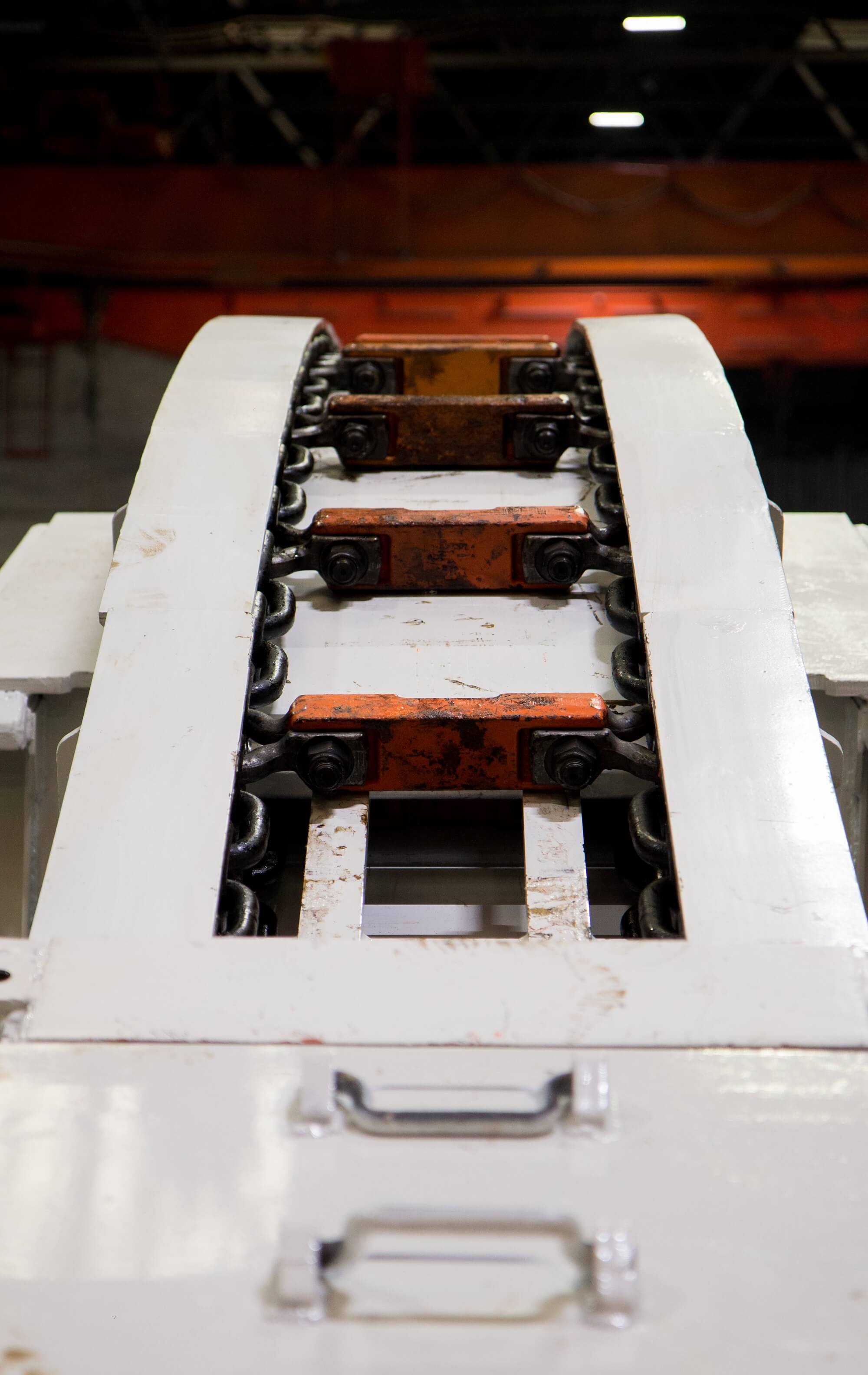

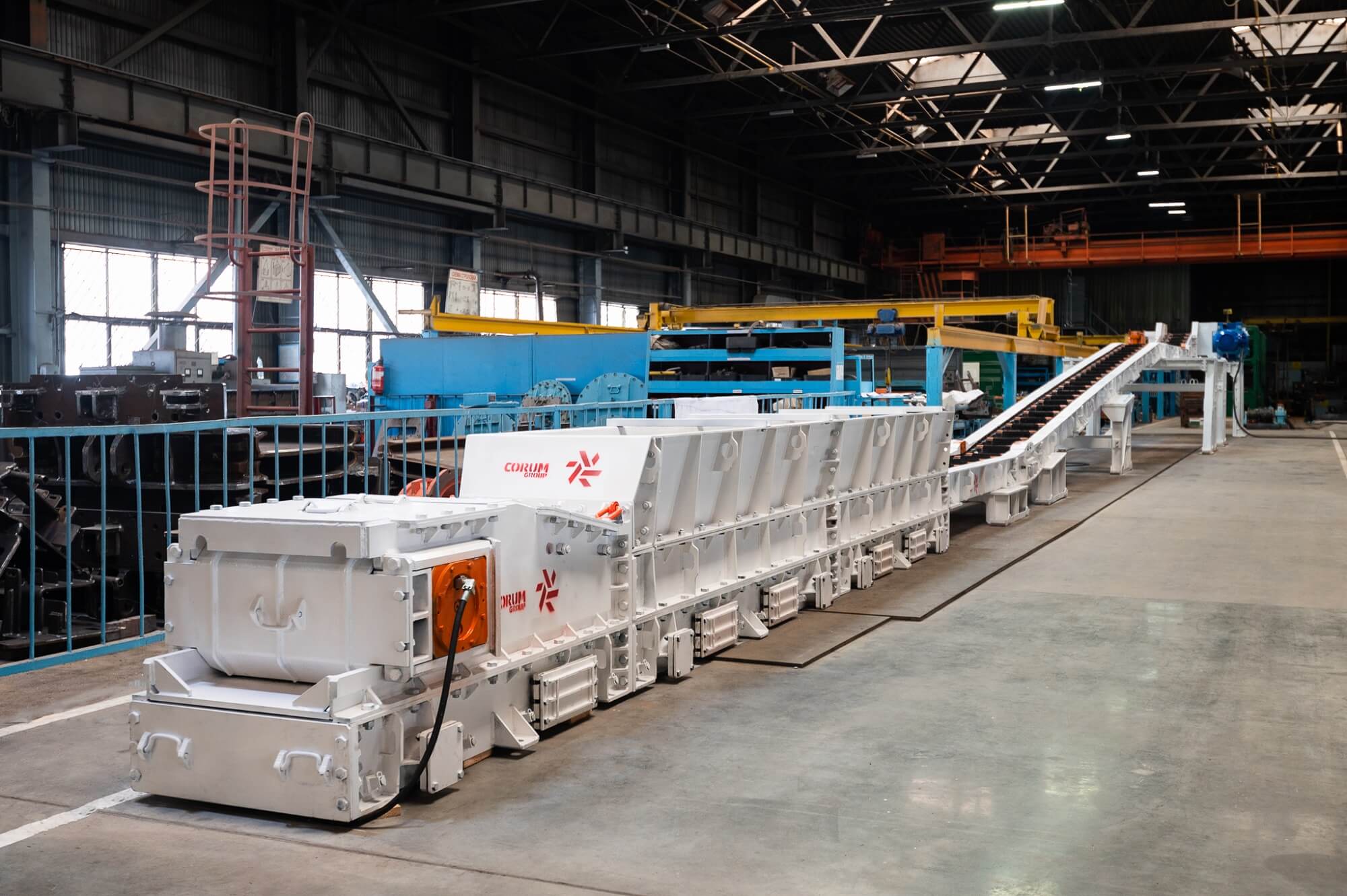

Armored conveyors with twin outboard chains arrangement SP250

from 0,8 to 1,24
Chain movement speed, m/s
up to 1,5
Conveyor lifetime, mln t
0,85 – 1,5
Seam thickness, m
55 – 220
Total installed power, kW
Description

Corum Group armored face conveyors and beam stage loaders have been produced using the facilities of Corum Svet Shakhtera plant since nineteen-forties. During the last 20 years there have been manufactured and supplied to the customers more than 1000 armored conveyors, which operate in difficult mining and geological conditions. Now there is no mine in Donetsk Coal Basin without Corum Group conveyor in operation. The supplies geography and company armored conveyors product portfolio keep growing every year.

The construction of the entire conveyor and its separate parts is focused to achieve the high equipment lifetime.

To every armored face conveyor there can be produced a relevant model of beam stage loader – in order to gain unification and substitutability of main units.

Characteristics
Seam thickness, m 0,85 – 1,5
Efficiency, t / h 240 – 430
Supply length, m up to 200
Total installed power, kW 55 – 220
Rated mains voltage, V 380, 660, 1140
Distance between chains axes, mm 350, 500
Chain movement speed, m/s from 0,8 to 1,24
Number of chains two, inside of pan guides
Chain calibre, mm 18х64
Pan height along the sidewalls, mm 190, 205 (rolled)
Pan length across sidewalls, mm 1350, 1500
Pan width outside, between the sidewalls, mm 498, 642
Conveyor lifetime, mln t up to 1,5
Compare
Questionnaire

Send us a questionnaire

Services

In addition to this product, following services can be ordered:

Sets

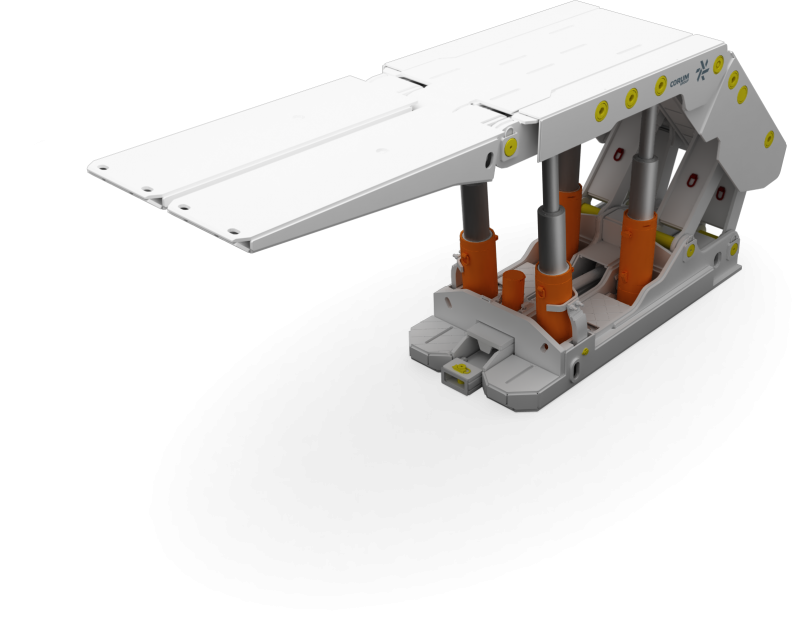

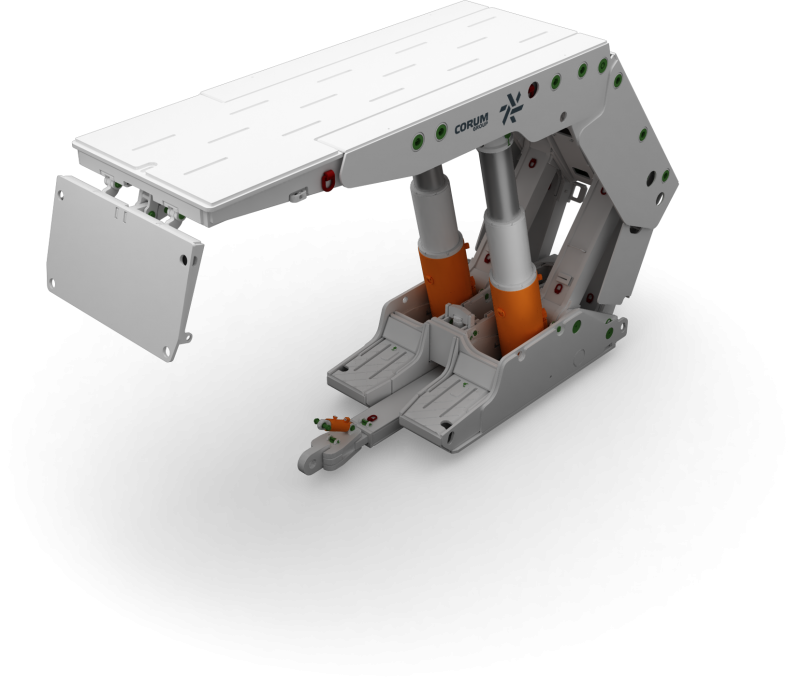

# Powered roof supports KD90 # Powered roof supports KD90T # Powered roof supports DT # Powered roof supports DM # Shearer CLS450 # Shearer KDK500 # Shearer КА200
#
